System Startup

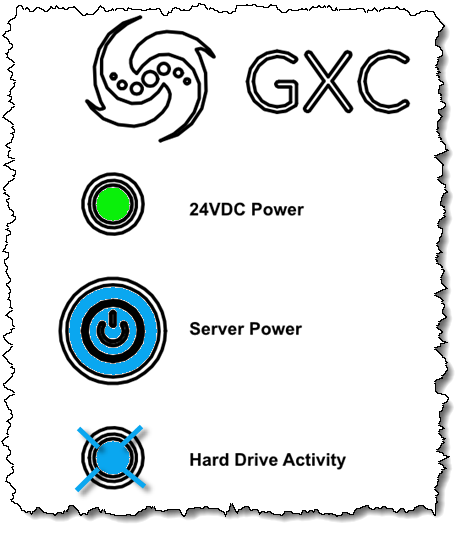

Refer to the figure below for the following steps.

1

Depress the Server Power Button, it should indicate blue.

The Hard Drive Activity LED should flash blue Figure : MNG Hard Drive Activity – flashing blue LED

NOTE: During this time observe the LED indications on the AP to verify it is starting up correctly (LED status can be found in the Troubleshooting section of this document).

NOTE: After depressing the Server Power Button, the MNG should become available on the Onyx Portal within 10 minutes.

2

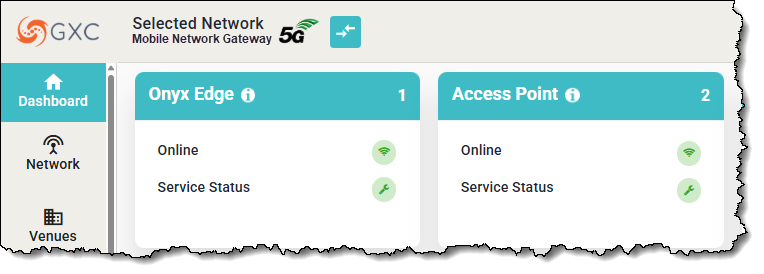

Refer to the Dashboard on the Onyx Portal to view the status of your MNG and APs as shown in the following figure. Green signifying Online and all Services available

Onyx Dashboard – Onyx Edge and AP Status

NOTE: After depressing the Server Power Button, the MNG should become available on the Onyx Portal within 10 minutes.

3

After installing SIMs on UE devices refer to the Subscriber Page to view the status of subscribers.

Subscriber Status

If the system does not show “Online” within 10 minutes, refer to the Troubleshooting section of this document to verify proper MNG operation and AP operating conditions.
