Equipment Connections

NOTE: Refer to the appropriate Hardware Installation Guide for the G105, G505, and G506 for detailed installation instructions and information on your device.

NOTE: Complete all Internal case connections prior to applying AC power to the kit.

Refer to the figure below to make the following connections.

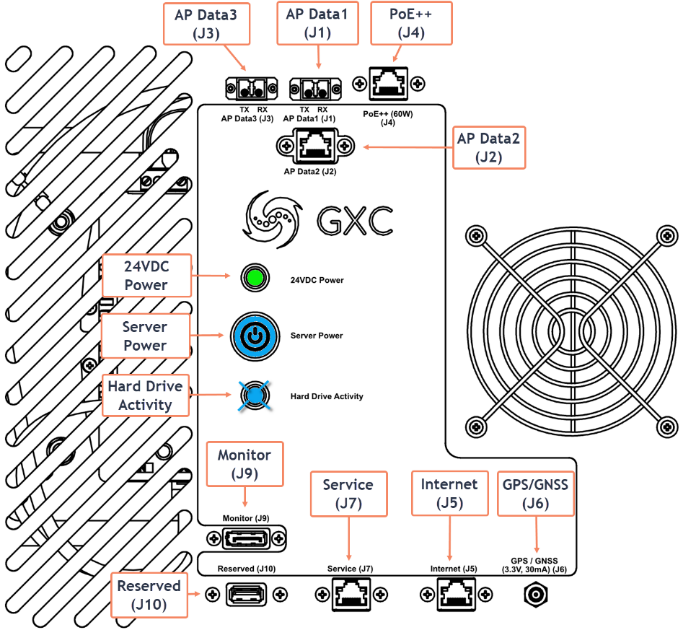

MNG internal connections

AP Connections

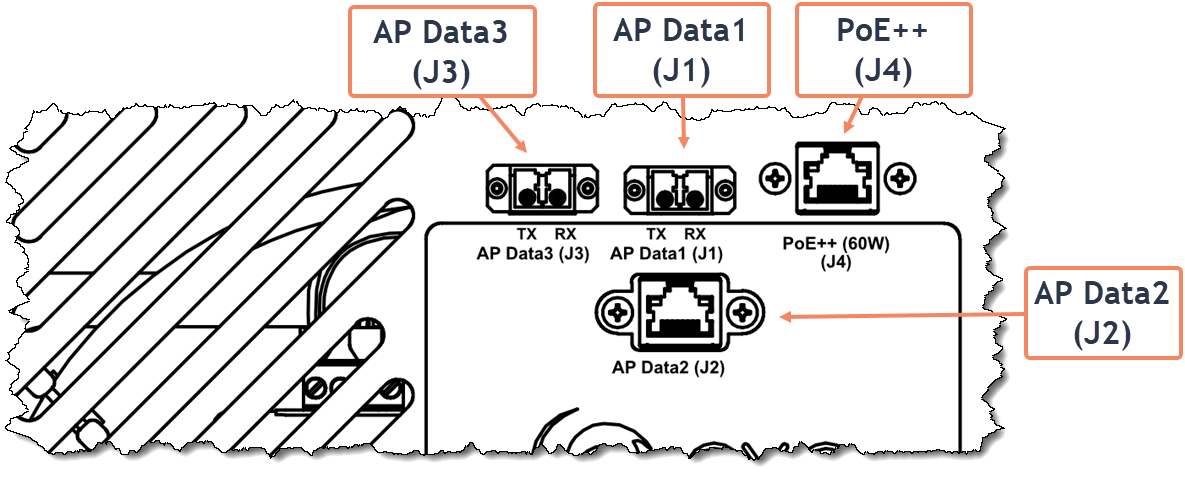

• J1-J3 are used for connecting GXC approved APs.

  • J3 is a 10GbE fiber port (LC, single-mode, long-reach)
  • J1 is a 10GbE fiber port (LC, single-mode, long-reach)
  • J2 is a 10GbE copper port (RJ45; 10G up to 30 m)

NOTE: A SM LC-LC fiber cable is provided in the Accessories box included with the AP selected by the customer during the kit ordering process.

NOTE: The MNG is capable of supporting up to 3 APs simultaneously.

• J4 is a PoE++ (60W) Ethernet RJ45 power only port (No Data Link)

Example AP combinations

AP Connections

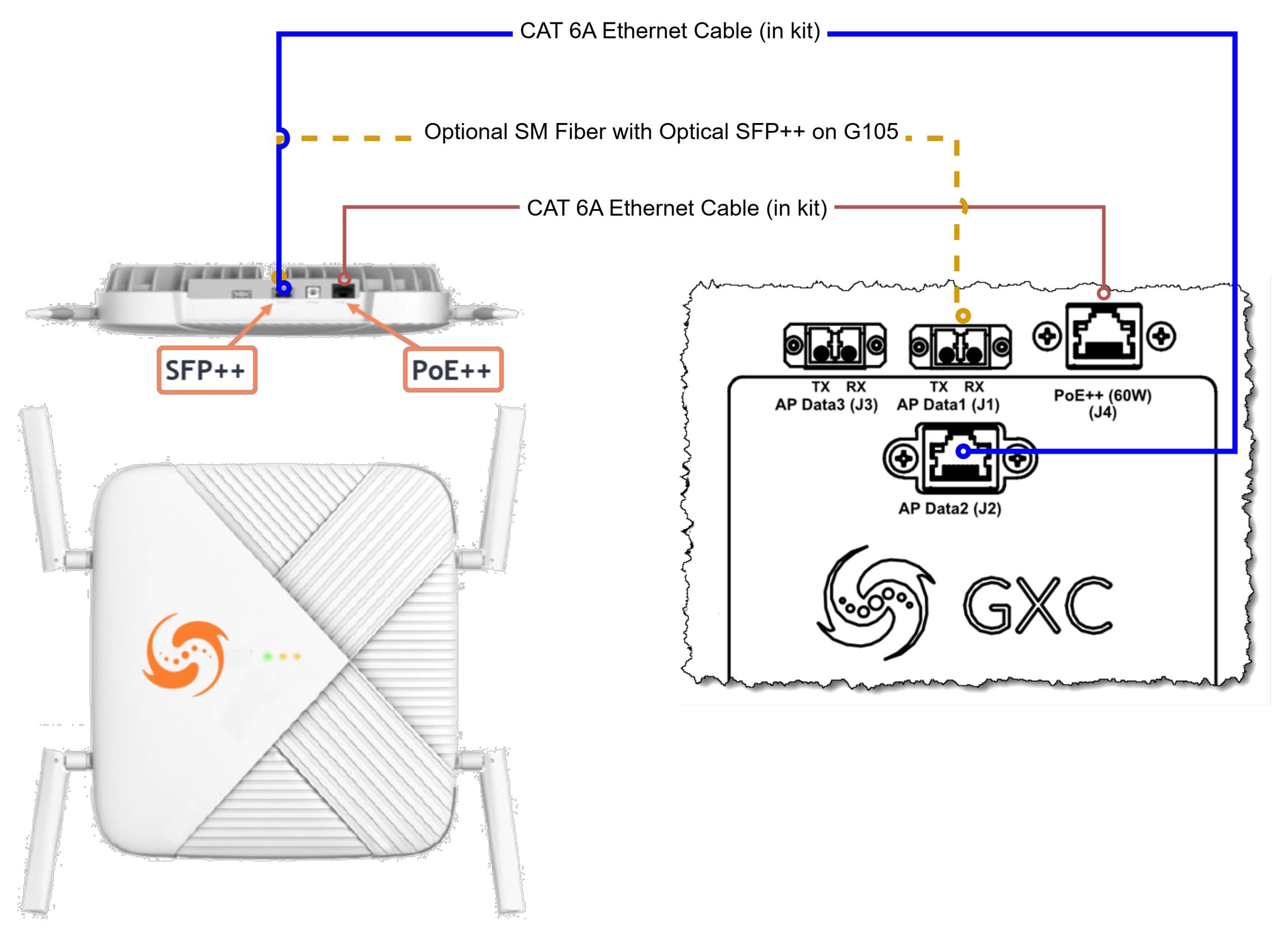

Refer to the figure above for the combinations described below.

G105

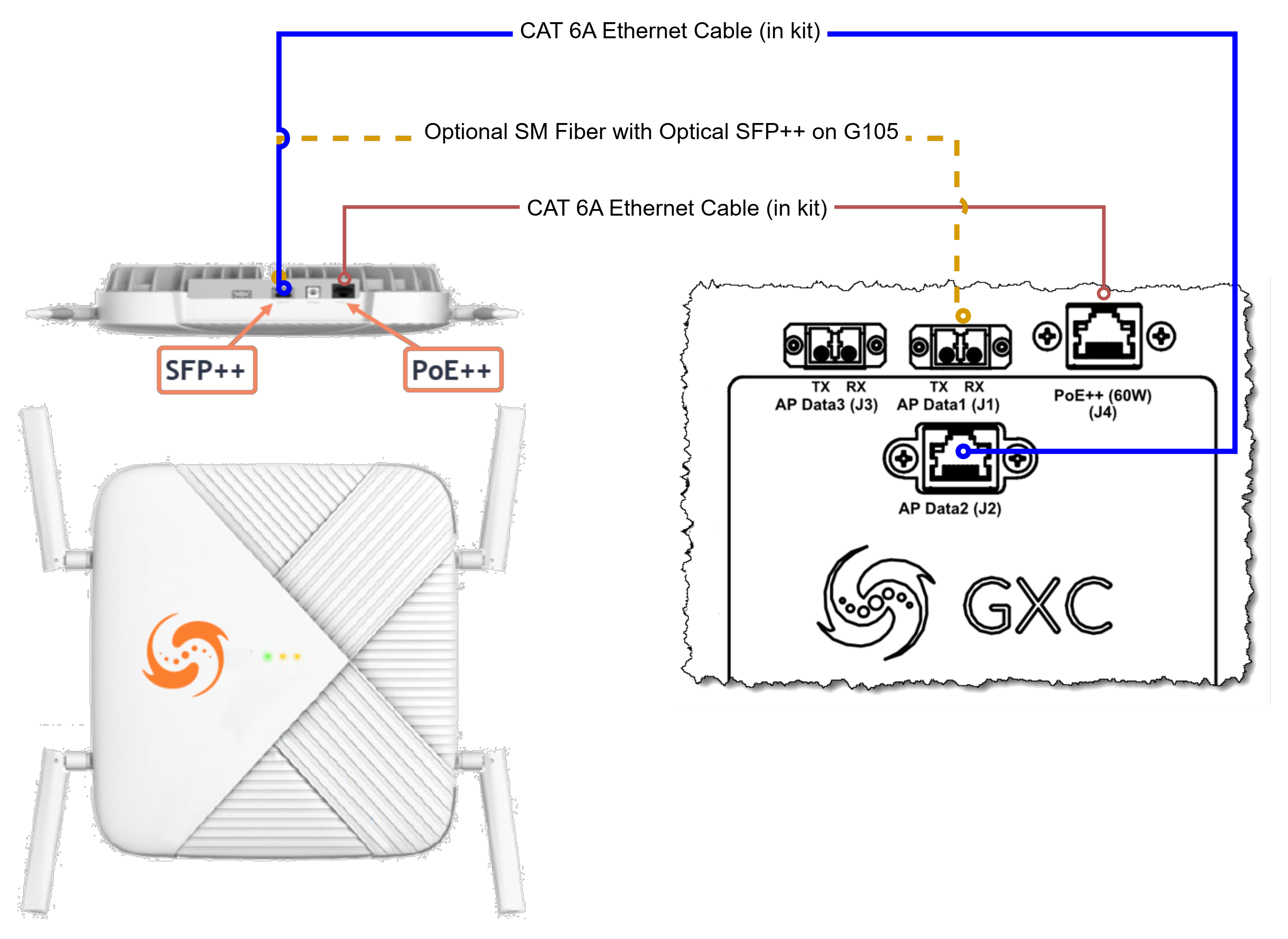

Using the supplied blue (data) and orange (power) Ethernet cables, make the connections as shown below. A dual SM LC fiber with an SFP++ can be used for the data connection as well and use either J1 (as shown) or J3.

G105 to MNG using PoE++ power

NOTE: If the G105 is ordered with the MNG-00X and a CAT 6A cable is used for the Data connection as shown in the figure above, obtain the Copper SFP++ from the MNG-00X included in the contents of the kit.

NOTE: When using the RJ45 (J2) there is a 30m limitation. When ordering the G105, a PoE injector, a 9m SM LC fiber cable, and 2 fiber SFP++ devices are included (only 1 is required for this kit) to allow the use of the optional fiber connection described in the figure above.

G505

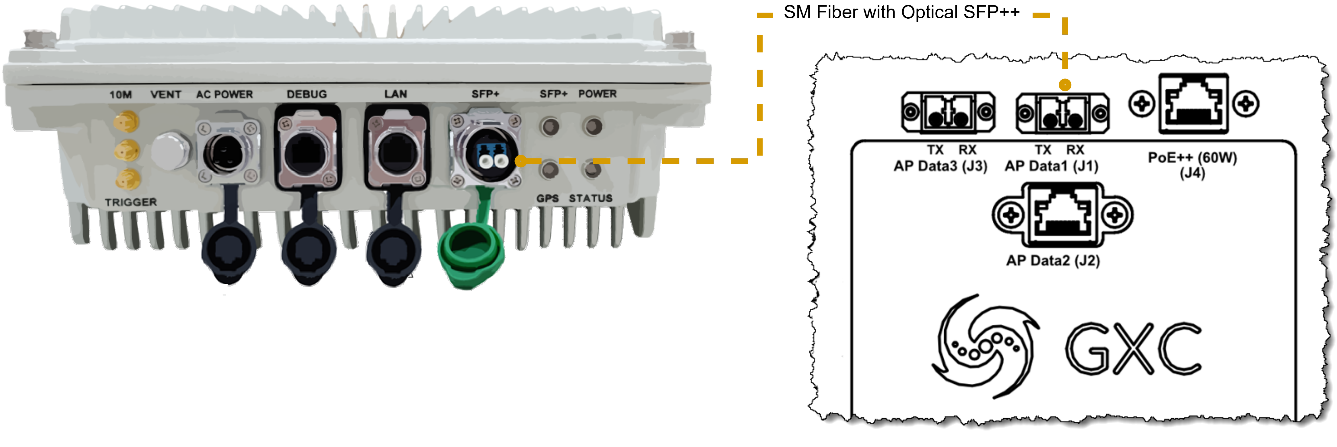

In the figure below, the G505 is shown connected to J1 but can be connected to J3 as well.

G505 Connection to the MNG

NOTE: Use one of the provided SM LC SFP++ and LC-to-LC fiber patch cable in the AP accessories box for this connection.

G506

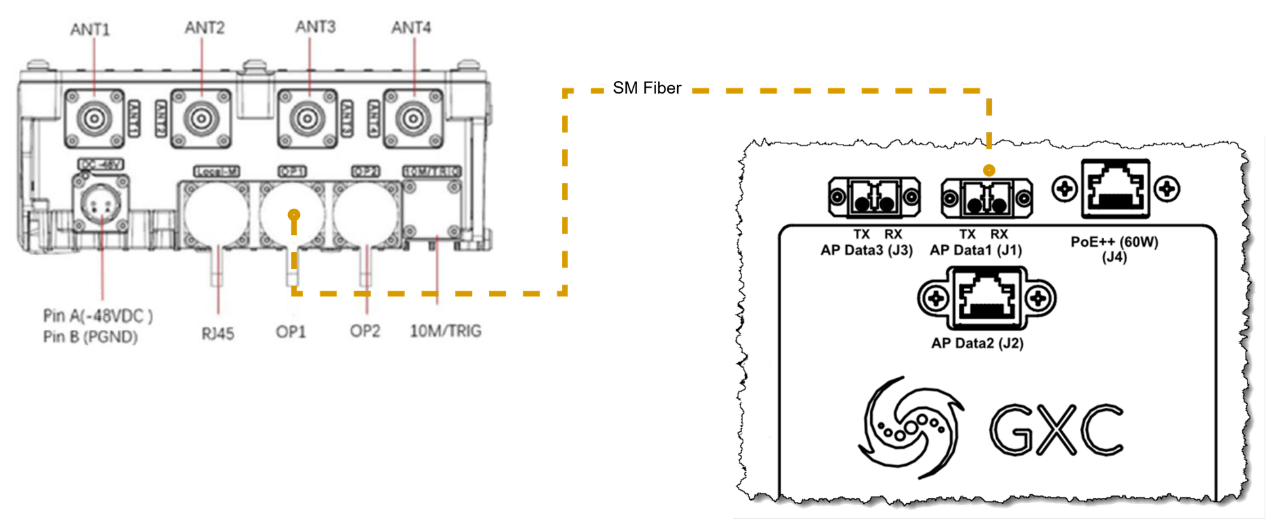

In the figure below, the G506 is shown connected to J1 but can also be connected to J3 as well.

G506 Connection to the MNG

NOTE: Use one of the provided SM LC SFP++ and LC-to-LC fiber patch cable in the AP accessories box for this connection.

External Case Connections

AC Power Port at Rear of Case (example)

1

Connect the 4 prong plug to the AC power port located at the rear of the case.

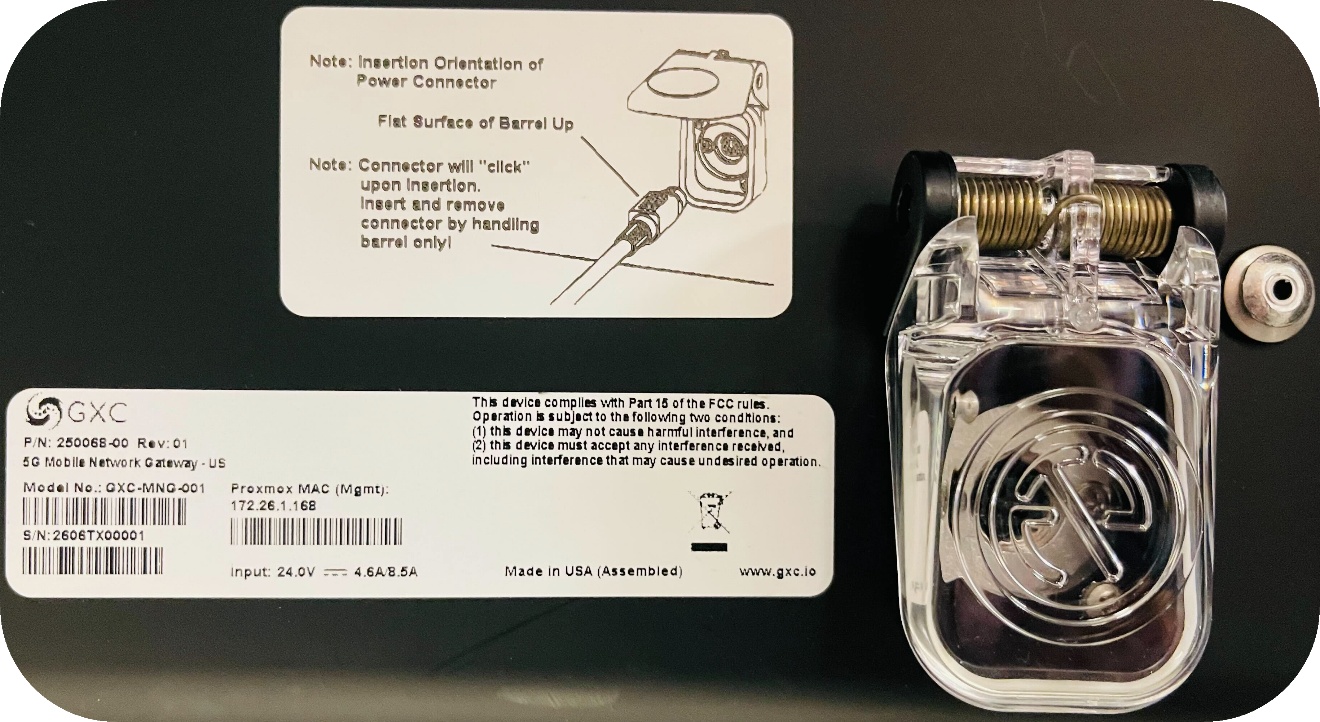

CAUTION: Insert the power connection with the flat side of the barrel facing up. When inserted fully, an audible “click” should be heard signifying the connector is locked in place.

CAUTION: When removing the power connection, only remove it by firmly grasping the barrel portion of the connector. This will disengage the locking mechanism allowing it to be safely removed.

2

Apply AC power by connecting the AC-DC power to a suitable AC outlet. The 24VDC power LED should indicate green as shown in the figure below.

MNG Green 24VDC LED

Optional Connections

Optional Connections

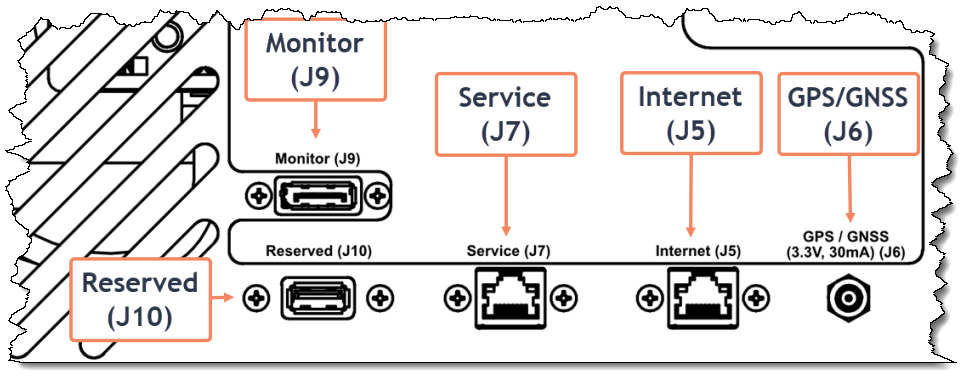

These optional connections are only required for troubleshooting should the MNG does not show up on the Onyx portal within 10 minutes. These ports should only be used as directed by GXC Technical Support. Refer to the figure above for the following connections.

• J9: Display Port – Monitoring of Onyx Edge
• J10: USB3 port – Peripherals as directed by GXC
• J7: RJ45 port – GXC system access
