Cable Connections Example

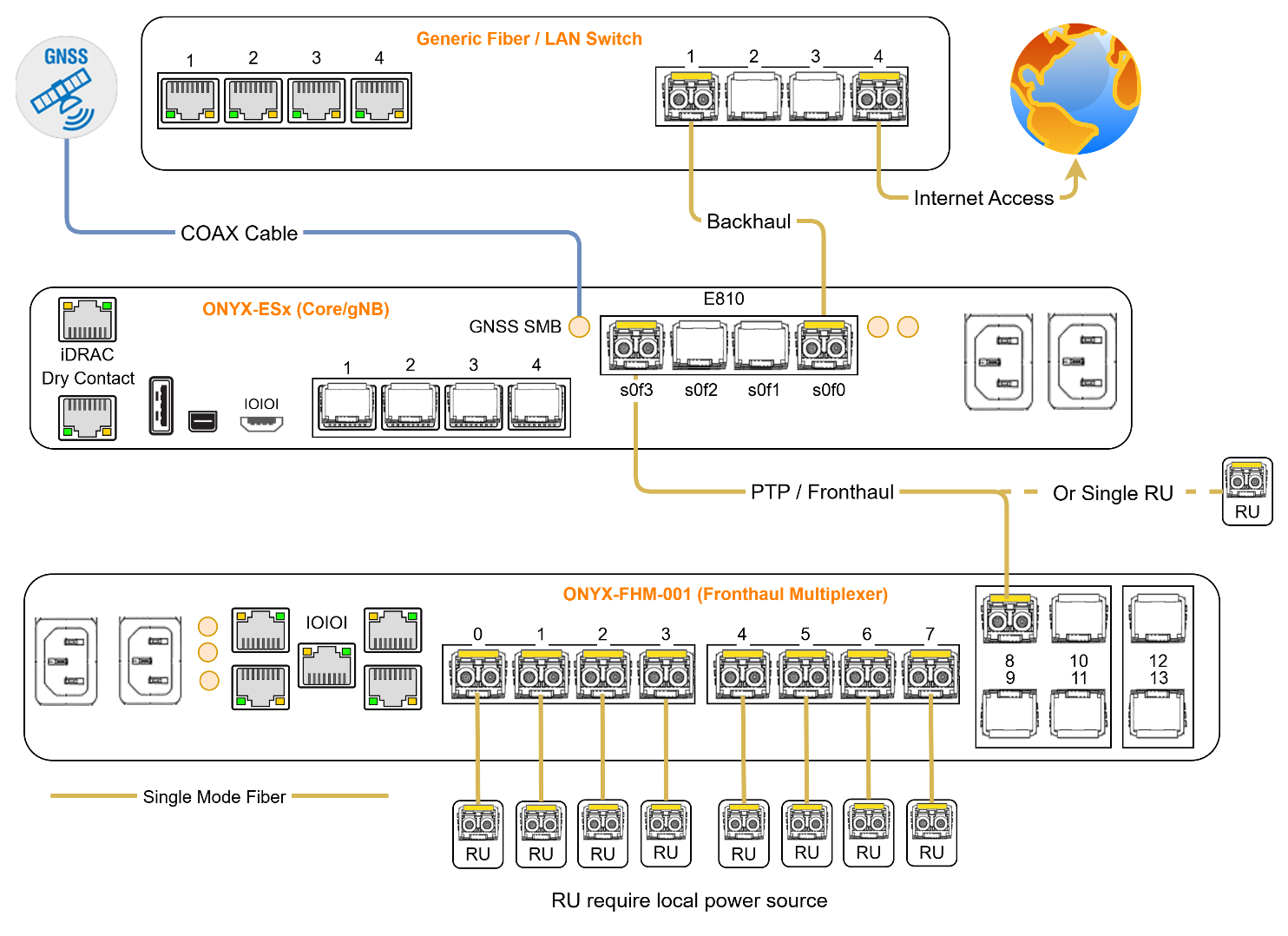

The diagram below illustrates the connections to the Core/gNB Appliance and FHM (if used in your deployment). Your configuration will vary depending on your deployment but the diagram below is a representation of what the connections will look like.

Single RU: Connect the RU directly to the Core/gNB server to s0f3-1 as shown below for a single RU per Cell. A Cell is a port of s0f3, s0f2, or s0f1.

Onboard the RU, Refer to the Onyx Portal Operations Guide (Manage Equipment > Manage APs > Add APs > Add APs to 5G Networks)

Multiple RU: Connect the RUs to the installed Onyx-FHM-001 starting with port 0. Ensure all RUs are of the same model.

To edit the FHM. Refer to the Onyx Portal Operations Guide (Manage Equipment > Manage FHM > Edit FHM

RU to Core/gNB or FHM
