# Onyx Portal Specification

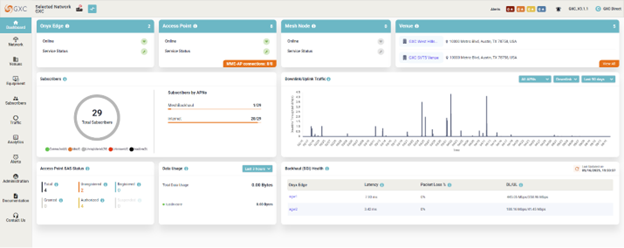

The GXC Onyx Portal is a cloud-native service for managing 4G and 5G Onyx networks with embedded Domain Proxy for SAS integration. It provides real-time visibility and comprehensive operations, administration, and management capabilities simplifying enterprise deployments.

![](https://content.gitbook.com/content/Zc9hpHmiTCrh1sn4mWXn/blobs/ybnCq6cGQ8bE2HS2xe4g/media/image3.png)

## Onyx Portal (Web-based GUI) with Orchestrator

| Cloud native, highly scalable architecture                                                                                                                                                                                                                                                                                                                                                                                 |
| -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| Single pane of glass to configure, monitor, and manage network-wide operations                                                                                                                                                                                                                                                                                                                                             |
| Multi-tenant architecture for GXC partner and customer accounts                                                                                                                                                                                                                                                                                                                                                            |
| Real-time dashboard with metrics and status at network, equipment, subscriber levels                                                                                                                                                                                                                                                                                                                                       |
| <p>Network and venue management</p><p></p><ul><li>Network- and venue-level radio configurations</li><li>Venue floorplan visualization for indoor deployments</li></ul>                                                                                                                                                                                                                                                     |
| <p>Equipment management</p><p></p><ul><li>(4G) Onyx Edge (Core), Access Points, Mesh Node</li><li>(5G) Onyx Edge (Core), Onyx Edge (Core+NR), Access Points, FHM</li><li>Provisioning support for Onyx Edge and Mesh Node onboarding</li><li>Equipment upgrade groups for controlled, simultaneous software updates</li><li>Remote command execution on Onyx Edge</li><li>Equipment inventory with export option</li></ul> |
| <p>Subscriber management</p><p></p><ul><li>Integrated SIM provisioning (physical and eSIM)</li><li>IMEI-based device binding and SIM swap prevention</li><li>(4G) Mesh Node–AP affinity management</li><li>Bulk provisioning subscriber accounts</li></ul>                                                                                                                                                                 |
| <p>Traffic management</p><p></p><ul><li>Default QoS configuration per APN</li><li>(4G) Custom traffic policies and QoS configuration at application group level</li><li>Traffic management applied at subscriber group level via application group associations</li></ul>                                                                                                                                                  |
| <p>Alerts and events monitoring and management</p><p></p><ul><li>Custom alert rules</li><li>Per-user severity-based alert email notifications</li><li>Mute/unmute alert email notifications</li><li>Key equipment and subscriber-level events logging</li><li>Alert-to-equipment and alert-to-event mapping</li></ul>                                                                                                      |
| <p>User management</p><p></p><ul><li>Multi-account user support</li><li>Configurable user session timeout</li><li>Export users list</li></ul>                                                                                                                                                                                                                                                                              |
| Integrated analytics summary and plot reports with export option                                                                                                                                                                                                                                                                                                                                                           |
| Equipment diagnostic logs with export option                                                                                                                                                                                                                                                                                                                                                                               |
| Operations audit logs with 60-days retention and export option                                                                                                                                                                                                                                                                                                                                                             |
| Onyx Portal user notifications (broadcast messaging)                                                                                                                                                                                                                                                                                                                                                                       |
| <p>Security features</p><p></p><ul><li>Hosted on AWS Cloud, with AWS WAF for web application protection and GuardDuty for continuous threat detection</li><li>SSO and MFA authentication via IdP integration</li><li>Role-based user access control</li></ul>                                                                                                                                                              |
| Secure API support for integration with third-party applications                                                                                                                                                                                                                                                                                                                                                           |
| Support and documentation                                                                                                                                                                                                                                                                                                                                                                                                  |

## Domain Proxy

| <p>SAS for CBRS Band (n48)</p><p></p><ul><li>Integrated SAS support for CBRS Band n48 via embedded Domain Proxy</li><li>Intelligent spectrum management based on availability and preference</li><li>Category A and B CBSD support</li><li>BTS and CPE CBSD support</li><li>Alerts for SAS events and frequency changes</li><li>Integrated with Federated Wireless SAS</li><li>Extended transmission timer expiry support</li><li>(5G) CBSD groups for FHM-associated APs</li></ul> |
| ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |

## Product SKUs

<table><thead><tr><th width="239.8333740234375">SKU</th><th>Description</th></tr></thead><tbody><tr><td>GXC-OCSLP-001-LTE</td><td>Onyx LTE Connect SW Indoor/Outdoor per AP/Radio/eNB - 1 Yr</td></tr><tr><td>GXC-OCSLP-003-LTE</td><td>Onyx LTE Connect SW Indoor/Outdoor per AP/Radio/eNB - 3 Yr</td></tr><tr><td>GXC-OCSLP-005-LTE</td><td>Onyx LTE Connect SW Indoor/Outdoor per AP/Radio/eNB - 5 Yr</td></tr><tr><td>GXC-OCSLP-001-5G</td><td>Onyx 5G Connect SW Indoor/Outdoor per AP/Radio/gNB - 1 Yr</td></tr><tr><td>GXC-OCSLP-003-5G</td><td>Onyx 5G Connect SW Indoor/Outdoor per AP/Radio/gNB - 3 Yr</td></tr><tr><td>GXC-OCSLP-005-5G</td><td>Onyx 5G Connect SW Indoor/Outdoor per AP/Radio/gNB - 5 Yr</td></tr></tbody></table>

\* Specifications and IDs are subject to change without prior notice.

## Contact GXC

To get in touch with GXC, please visit <https://gxc.io/contact-us/>.


---
